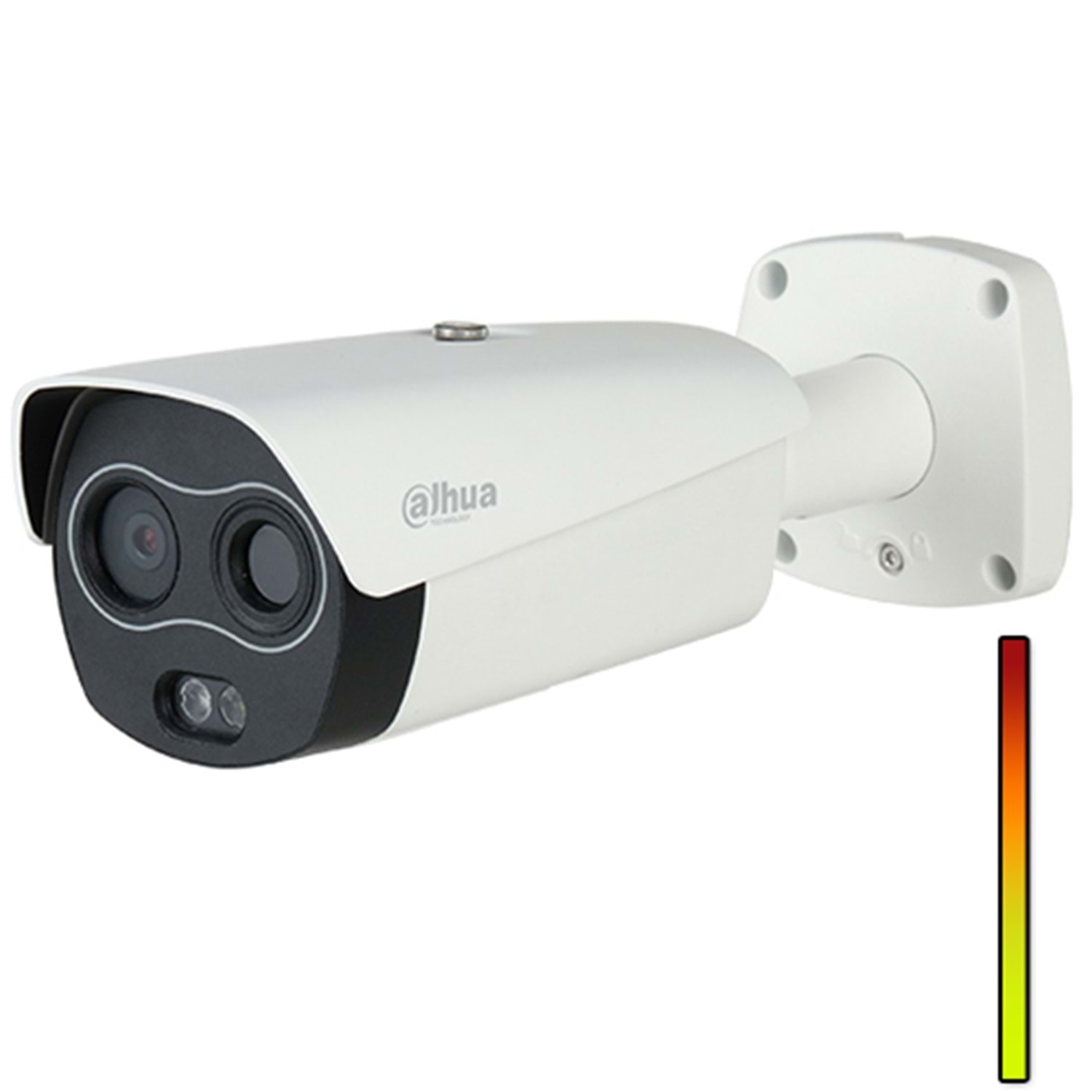

OUTLET DAHUA (DH-TPC-BF5421P-TB13F8-HTM) IP BULLET TERMAL KAMERA

Henüz Değerlendirilmemiş

Stok Kodu

: Y5303346

Stok Miktarı

: 1 ADET

Whatsapp ile Sipariş

400 × 300 uncooled VOx thermal sensor technology

Athermalized lens (thermal), focus-free

Support body temperature measurement

Measurement Accuracy: ±0.3°C, with blackbody

Active deterrence with white light & siren

Various lens optional (7.5/13 mm)

2/2 alarm in/out

Micro SD memory, IP67, PoE,ePoE

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400x300

Pixel Pitch

17 μm

Stectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

≤40 mK

Focal Length

7.5mm, 13mm

Field of Mode

7.5 mm: horizontal: 53.7°, vertical: 39.7°

13 mm: horizontal: 30°, vertical: 22.6°

Focus Mode

Fixel Focal

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Thermal Image Stabilization

Electronic Image Stabilization

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°/180°/mirror

Color Palettes

18 color modes selectable such as Whitehot/Blackhot/Ironrow/Icefire.

Temperature

Measurement Range

30°C ~+45°C

Temperature Accuracy

Max ±0.3°C with blackbody

Max ±1°C without blackbody

Temperature Mode

Spot: 12

Line: 12

Area: 12

Support 12 rules simultaneously

Visible Lens

Focal Length

4mm

8mm

Max Aperture

F2.0

F1.9

Angle of View

H: 84° V: 45°

H: 40° V: 22°

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Resolution

Main stream:

(1280 × 1024/1280 × 960/1280 × 720/400 × 300), 1280 × 960 by default;

Sub stream: (640 × 512/640 × 480/400 × 300@), 400 × 300 by default

Audio Compression

G.711a; G.711mu; AAC; PCM

Image Encoding Format

JPEG

General Function

Two-way Talk

Yes

Network Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Region of Interest (ROI)

Yes

Edge Storage

FTP; Micro SD card (256G, hot plug)

Interoperability

ONVIF; CGI; Dahua SDK

Browser

IE: IE8 and the later, and explorer with IE core

Google: 42 and the earlier

Firefox: 42 and the earlier

Safari: 10 and the earlier

User/Host

20 channels at most (the total bandwidth 64M)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Support 20 users at most and users are classified as two groups-administrator group and user group.

Malfunction Detection

Network disconnection; IP addresses conflict; SD card error (status or storage space)

Port

Analog Video Output

1 channel of CVBS output with BNC port

Network

1 10M/100M Ethernet port (RJ-45)

Alarm Input

2 channels

Alarm Output

2 channels

Audio Input

1 channel

Audio Output

1 channel

Alarm Linkage

SD card recording/on-off output/

siren and light/email/PTZ/snapshot

Alarm Event

Motion detection/privacy mask/audio detection/SD card abnormality/network abnormality/anti-burn warning

RS-485

1 channel

Power

Power Supply

12V±20% DC, 1.2A, PoE (802.3af), ePoE

Power Consumption

Basic: 5.0W

Maximum: 12W (power adapter excluded)

Enviroment

Operating Temperature

10°C to +30°C

Operating Humidity

≤95%

Self-Adaptive

Auto heating to protect the chip under the cold environment

Physical Characteristics

Protection Grade

IP67, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air)

Packaging Dimensions

365 mm × 175 mm × 176 mm (14.37" × 6.89" × 6.93")

Net Weight

≤1.4 kg (3.09 lb)

Gross Weight

≤1.9 kg (4.19 lb)

Power Adaptor

Selectable

Lens

Contained

Certification

Certifications

CE; FCC
