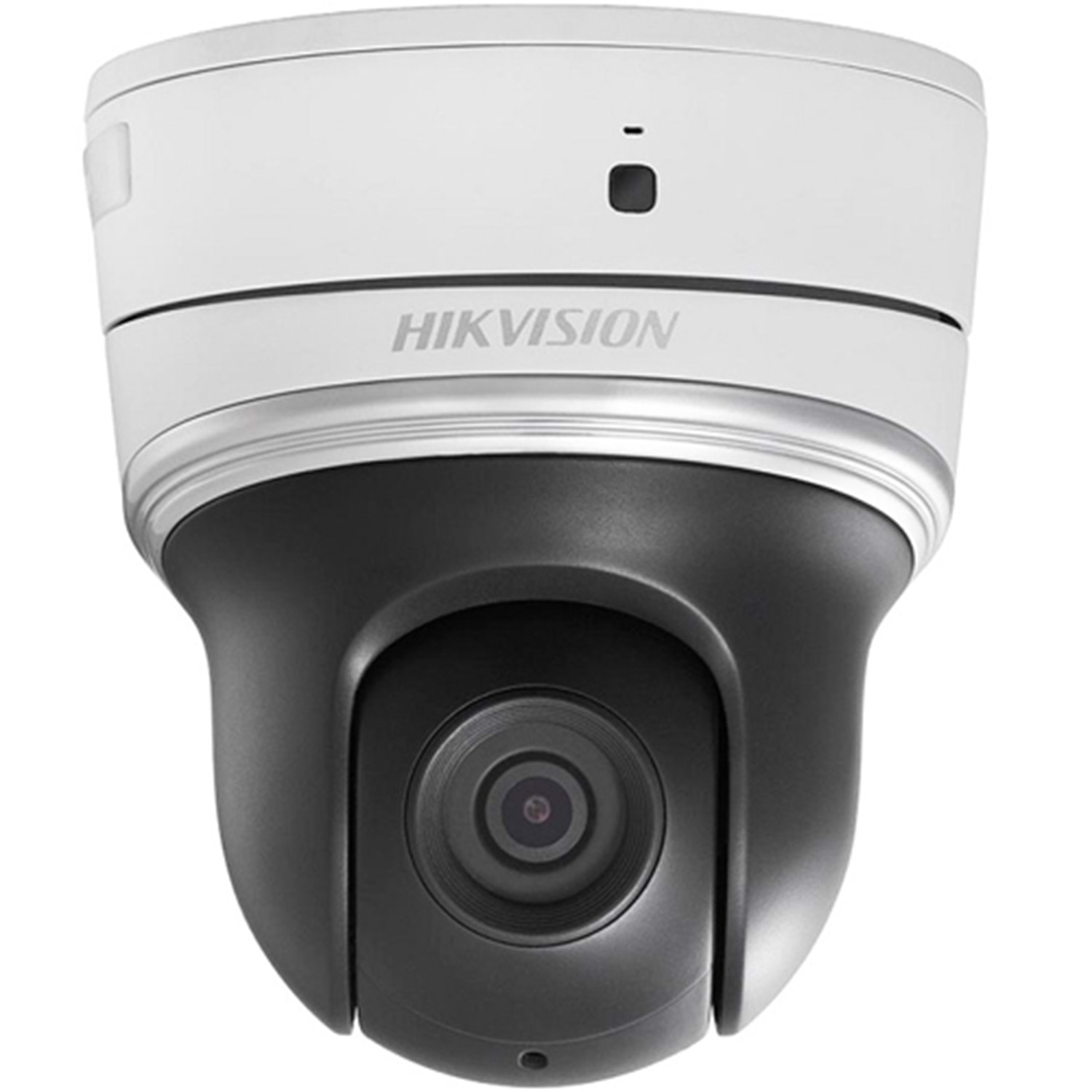

HIKVISION (DS-2DE2204IW-DE3) 2MP 1/2.8 PS CMOS 4X OPTİK 2.8-12MM NETWORK İÇ ORTAM IR MİNİ PTZ KAM-20

Henüz Değerlendirilmemiş

Stok Kodu

: Y5303329

Stok Miktarı

: 2 ADET

Whatsapp ile Sipariş

2MP Network İç Ortam IR Mini PTZ Kamera (H.265+, 4X, 20mt IR)
1/2.8" PS CMOS, 0.05Lux (renkli), 0.005 (S/B), ICR, OtoFocus, Beyaz Dengesi (AWB, ATW), AGC, BLC, WDR, 4X optik zoom (2.8-12mm), 16X dijital Zoom, DNR, maskeleme (8 bölge, programlanabilir), Analizler (izinsiz giriş, hat ihlali, ani ses değişimi, hareket algılama), HLC, ROI, Üçlü Akış, Pan: 0°~350°, Tilt: 0°~90°, 300 ön ayar, Alarm G/Ç, Ses G/Ç, mSD desteği (~128GB), 12V DC veya PoE (max.9W), Yüksek Gerilim Koruması (TVS 4000V)

DS-2DE2204IW-DE3

2.0 MP Network IR Mini PTZ Camera

- 1/2.8" Progressive Scan CMOS
- 1920 × 1080@30fps Resolution
- 4x Zoom
- DWDR
- 3D positioning
- PoE (802.3af)
- Hik-Connect
- Up to 20m IR distance

Camera
Image Sensor:		1/2.8" Progressive Scan CMOS
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON)
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Auto/Manual
HLC:		Support
WDR:		DWDR
Shutter Time:		1/1 to 1/10,000s
Day& Night:		ICR
Digital Zoom:		16×
Privacy Mask:		8 programmable privacy masks
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		2.8 to 12mm, 4×
Zoom Speed:		Approx. 2s (optical lens, wide-tele)
Field of View:		100° to 25° (wide-tele)
Minimum Working Distance:		10 to 1500mm (wide-tele)
Aperture Range:		F1.8 to F2.5

Pan & Tilt
Pan Range:		Pan: 0~350°
Pan Speed:		0.1° to 60°/s
Tilt Range:		Tilt: 0°~90°
Tilt Speed:		0.1°to 50°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets per patrol
Power-off Memory:		Support
Park Action:		Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:		ON/OFF

Infrared
IR Distance:		20m
IR irradiation angle:		Adjustable by zoom

Alarm
Alarm Input:		1
Alarm Linkage:		Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

Input & Output
Audio Input:		Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output:		1 channel audio output, linear level

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz:25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz:30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120)
Video Compression:		H.264 / MJPEG
Audio Compression:		G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode:		OFF/Audio input/Audio output

General
Power Supply:		12V DC & PoE((802.3af, class3)
Power Consumption:		Max.: 9W
Working Temperature/Humidity:		-10°C to 50°C (-14°F to 122°F)
Protection Level:		TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Weight (approx.):		Approx. 0.65kg (1.4lb)
