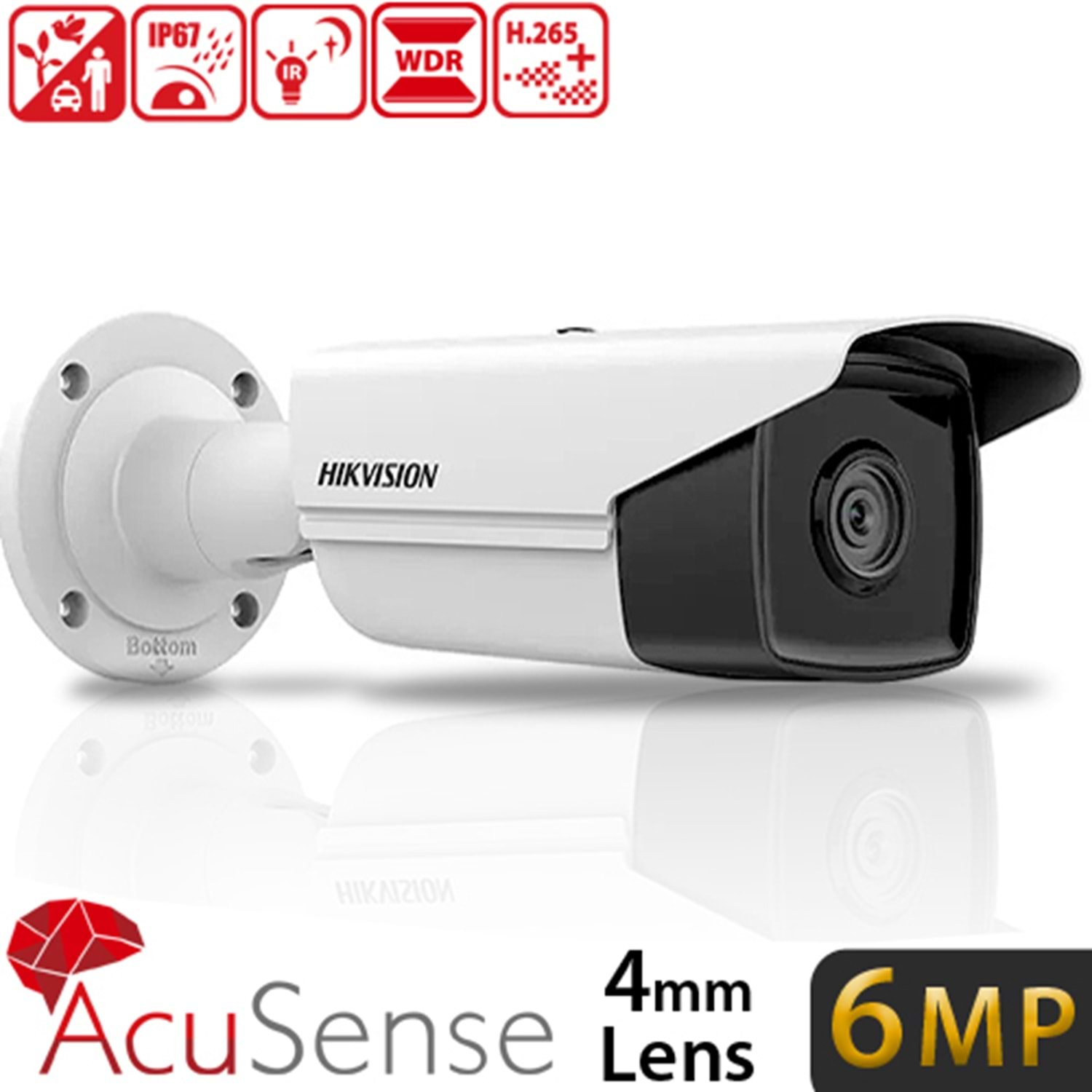

HIKVISION (DS-2CD2T63G2-2I) 6MP 4MM ACUSENSE IR BULLET IP KAMERA IP67 SD KART 60MT

Henüz Değerlendirilmemiş

Stok Kodu

: Y5303383

Stok Miktarı

: 2 ADET

Whatsapp ile Sipariş

6 MP AcuSense Fixed Bullet Network Camera

High quality imaging with 6 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong backlight due to 120 dB WDR technology
Focusing on human and vehicle classification based on deep learning
Water and dust resistant (IP67)

Camera
Image Sensor : 1/2.8" Progressive Scan CMOS
Max. Resolution : 3200 × 1800
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens Type : Fixed lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
Lens Mount : M12
Iris Type : Fixed
Aperture : F1.6

DORI
DORI
2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m

4 mm: D: 90 m, O: 35 m, R: 18 m, I: 9 m

6 mm: D: 147 m, O: 58 m, R: 29 m, I: 15 m

Illuminator
Supplement Light Type : IR
Supplement Light Range
-2I: up to 60 m

-4I: up to 80 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm

Video
Main Stream
50 Hz: 20 fps (3200 × 1800)

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3200 × 1800)

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR/VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host : Up to 32 users. 3 user levels: administrator, operator and user
Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client : iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11

Plug-in free live view : Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch : Yes
Image Settings : Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch : Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) : 120 dB
SNR : ≥ 52 dB
Image Enhancement : BLC, HLC, 3D DNR

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support micro SD card, up to 256 GB
Reset Key : Yes

Event
Basic Event : Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event : Face detection
Linkage : Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

General
Power
-2I:

12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

-4I:

12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material
Aluminum alloy body

Sun shield, IR cover: plastic
Dimension : Ø105 mm × 299.7 mm (Ø4.1" × 11.8")
Package Dimension : 386 mm× 156 mm × 155 mm (15.2" × 6.2" × 6.2")
Approx. : 1065 g (2.4 lb.)
With Package Weight : Approx. 1560 g (3.5 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function : Anti-flicker, heartbeat, password reset via email, pixel counter

Approval
EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Environment : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection : IP67 (IEC 60529-2013)
