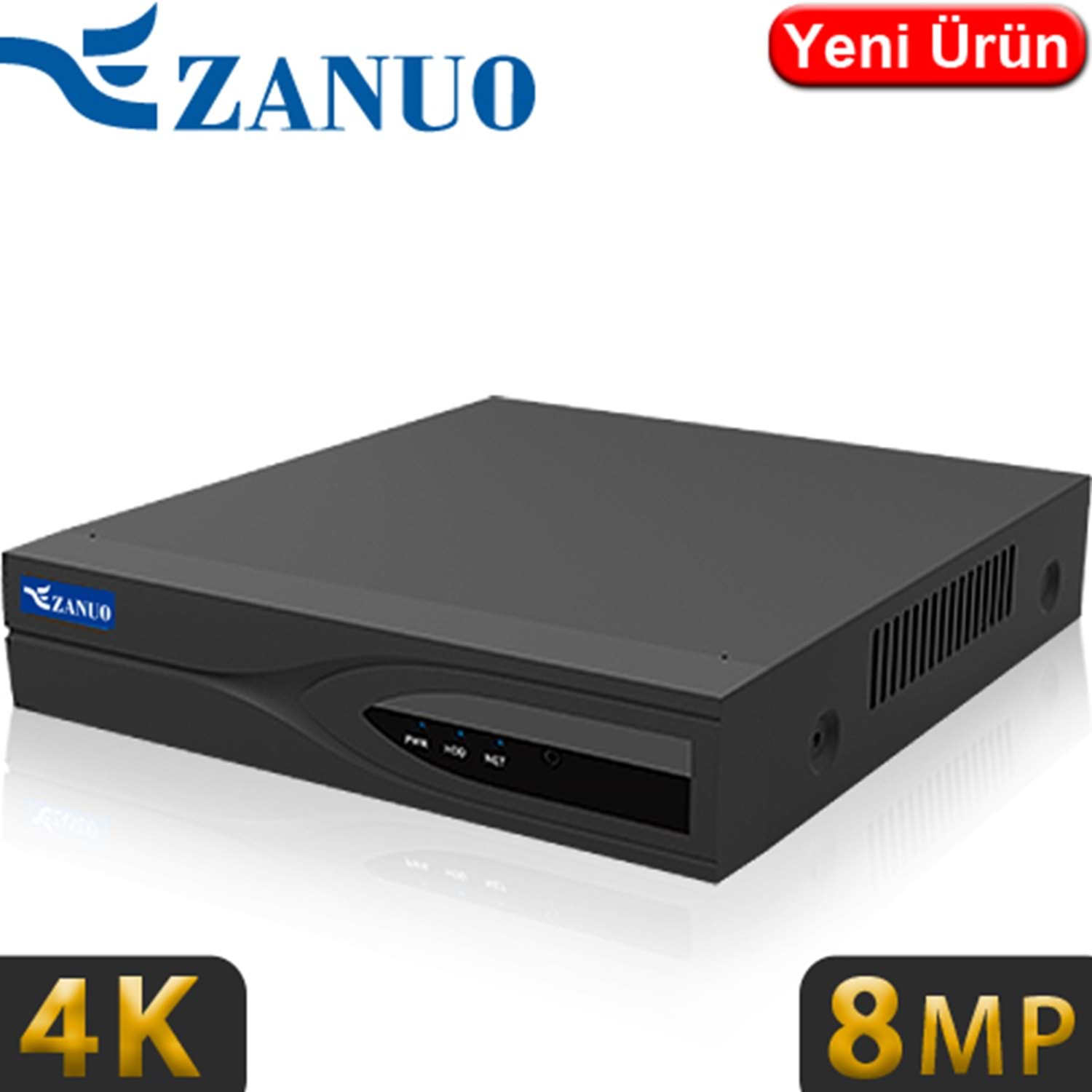

ZANUO (ZN-NVR5108C) 8 KANAL 1x14TB HDD DESTEKLİ 8MP KAMERA DESTEKLİ 4K NVR KAYIT CİHAZI

Henüz Değerlendirilmemiş

Stok Kodu

: E33143

Stok Miktarı

: 20+ ADET

Whatsapp ile Sipariş

Güncelleme Dosyaları İçin Tıklayınız

8-ch 1 HDD 4K NVR

Model:NVR5108C

Max. 96 Mbps incoming; Max 8 Channel 8MP IPC input;
6-channel 1080P decoding capability;
Support 4K HDMI output; Up to 8 channels for playback;
Support P2P, APP Alarm Push; Support AI search;
AI by camera: Face Detection, Intrusion, Tripwire(classification of human/vehicles /non-motor), Object Detection, and SMD

Technical specifications

System	OS	Embedded Linux
System	OS Operation Interface	Web/operating in local GUI
AI by Camera	Perimeter Protection	8 channels
	Face Detection	8 channels
	SMD	8 channels
Video&Audio Input	Incoming bandwidth	96Mbps
	Output bandwidth	96Mbps
	IPC Input	8CH
Video&Audio Output	VGA	1920×1080,1280×1024,1280×720,1024×768
	HDMI	3840×2160,1920×1080,1280×1024,1280×720,1024×768
	Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding	Audio Compression	G.711A
Audio Encoding	Audio Bit Rate	8Kbps(16bit)
Video&Audio Decoding	IP channel Resolution	Up to 3840×2160
	Video decoding	H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
	Audio decoding	G.711A,G711U,G726
	Synchronous Playback	8CH
	Decoding Ability	4CH 1080P@30FPS/1CH 4K@30FPS
Preview	Synchronous Preview	8
Preview	Multi-screen Display	1, 4, 8, 9 views
Playback	Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
	AI Search	Search by target classification (human, vehicle,non-motor vehicle)
	Backup	USB device
	Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file); partially enlarge; audio on/off
Network	Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
	Mobile Phone Access	Android; iOS
	Interoperability	ONVIF; SDK
	Browser	IE8 or later
HDD	SATA	1
	ESATA	0
	Max Capacity	14 TB
External Interface	PoE Ports	0
	Network Interface	1 RJ45 100M
	VGA	1
	HDMI	1
	CVBS	0
	USB	2*USB2.0 on Back Panel
	RCA Input	1
	RCA Output	1
	Alarm Input	0
	Alarm Output	0
	RS-232	0
	RS-485	0
Other Function	Two-way Talk	Yes
	Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
	Picture Capture	Support JPEG Capture
General Parameter	Front Panel	C
	Packing	410x293x60mm
	Dimensions	Mini 1U 215x235x45mm
	Weight	0.9Kg(No HDD)
	Installation	Desktop Installation
	Power Supply	DC 48V/1.35A
	Working Temperature	-10?--+55?
	Working Humidity	10%--90%
	Consumption	7W(without HDD)
Certifications	Certifications	CE/FCC
