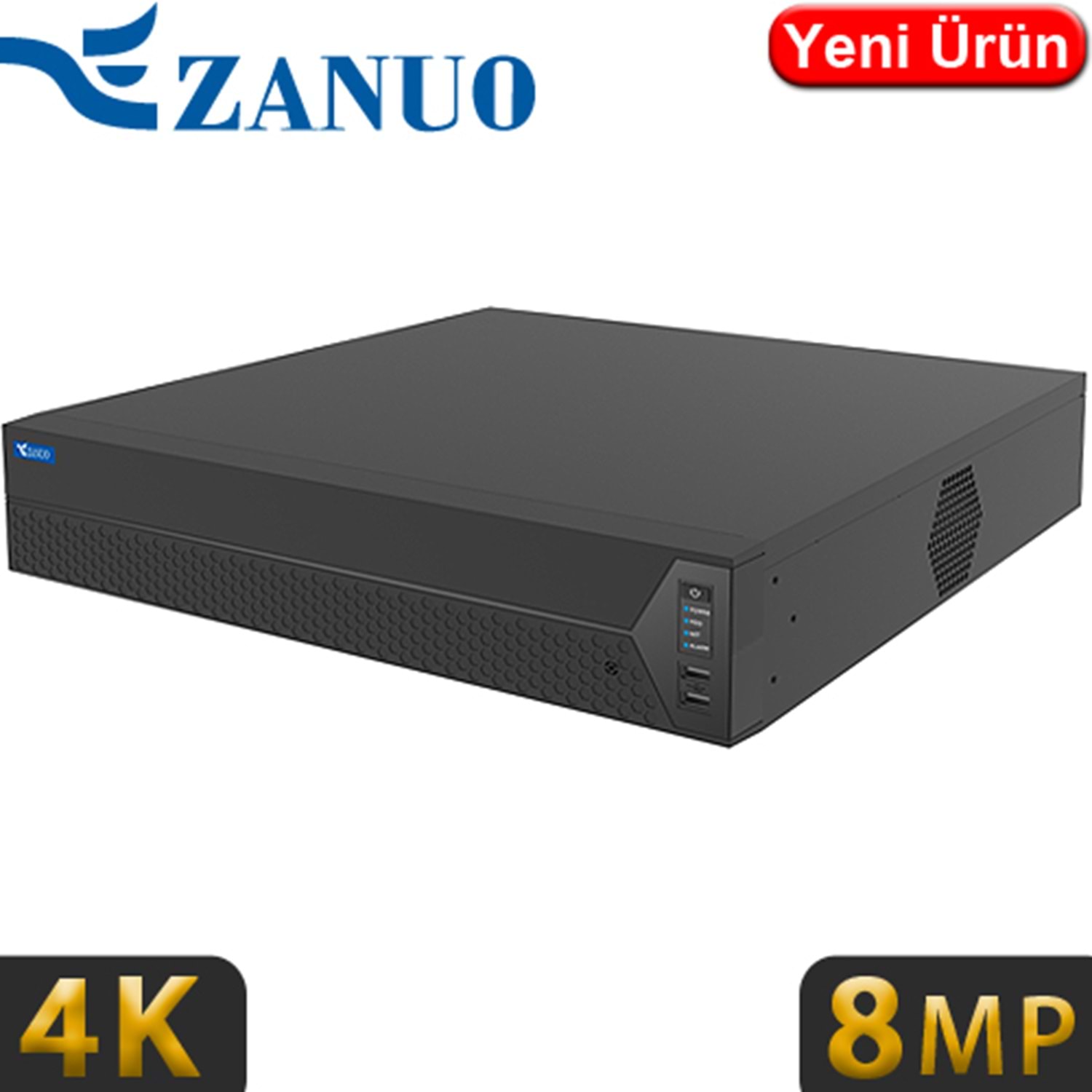

ZANUO (ZN-NVR8864E-I) 64 KANAL 8x14TB HDD DESTEKLİ 8MP KAMERA DESTEKLİ 4K NVR KAYIT CİHAZI

Henüz Değerlendirilmemiş

Stok Kodu

: E33147

Stok Miktarı

: 10 ADET

Whatsapp ile Sipariş

Güncelleme Dosyaları İçin Tıklayınız

64-ch 8 HDD 4K Ultra AI NVR

Model:NVR8864E-I

Max. 384 Mbps incoming; Max 64 Channel 8MP IPC input;
32-channel 1080P decoding capability; Supports adaptive decoding
Support 4K HDMI output; Up to 16 channels for playback;
Support P2P, APP Alarm Push;
AI by camera: Face Detection, Perimeter Protection, Video Metadata and SMD
AI by NVR: Face Detection, Face Recognition, Perimeter Protection, and SMD

Technical specifications

System	OS	Embedded Linux
System	OS Operation Interface	Web/operating in local GUI
AI by Camera	Perimeter Protection	64 channels
	Face Detection	64 channels
	Object Detection	64 channels
	SMD	64 channels
AI by NVR	Perimeter Protection	4 channels
	Face Detection	4 channels
	Face Recognition	4 channels(20 face databases with 100,000 face pictures in total)
	Performance	8 channels
Video&Audio Input	Max bandwidth	384Mbps
Video&Audio Input	IPC Input	64CH
Video&Audio Output	VGA	1920×1080,1280×1024,1280×720
	HDMI	3840×2160,1920×1080,1280×1024,1280×720
	Audio Output	1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding	Audio Compression	G.711A
Audio Encoding	Audio Bit Rate	64Kbps
Video&Audio Decoding	IP channel Resolution	Up to 3840×2160
	Video decoding	H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
	Audio decoding	G.711A,G711U,G726
	Synchronous Playback	16CH
	Decoding Ability	32CH 1080P@30FPS/8CH 4K@30FPS
Preview	Synchronous Preview	32
Preview	Multi-screen Display	1, 4, 8, 9, 16, 25, 32 views
Playback	Record Mode	Manual; Schedule (general; MD; alarm; intelligent)
	AI Search	Search by target classification (human, vehicle,non-motor vehicle)
	Backup	USB device
	Playback Function	1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network	Network Protocol	HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
	Mobile Phone Access	Android; iOS
	Interoperability	ONVIF; SDK
	Browser	IE; Edge; Google; Firefox
HDD	SATA	8
	ESATA	1
	Max Capacity	16 TB
External Interface	PoE Ports	0
	Network Interface	2 RJ-45( 10/100/1000 Mbps)
	VGA	1
	HDMI	2
	USB	2 USB 2.0 (on back panel),2 USB 2.0+1 USB 3.0 (On front)
	RCA Input	1
	RCA Output	2
	Alarm Input	14
	Alarm Output	8
	RS-232	1
	RS-485	1
	Reset	1(on the mainboard)
Other Function	IPC Access	Support One-Click add IPC function
	Two-way Talk	Yes
	Alarm Linkage	Record; Snapshot; Buzzer; Log; Preset; Email
	Picture Capture	Support JPEG Capture
General Parameter	Front Panel	CU
	Packing	520x520x215mm
	Dimensions	2U 441x448x88mm
	Weight	7Kg(No HDD)
	Installation	Rack or desktop Installation
	Power Supply	AC110V~220V±10% 47Hz~63Hz
	Working Temperature	-10?--+55?
	Working Humidity	10%--90%
	Consumption	20W(without HDD,without POE)
Certifications	Certifications	CE/FCC
