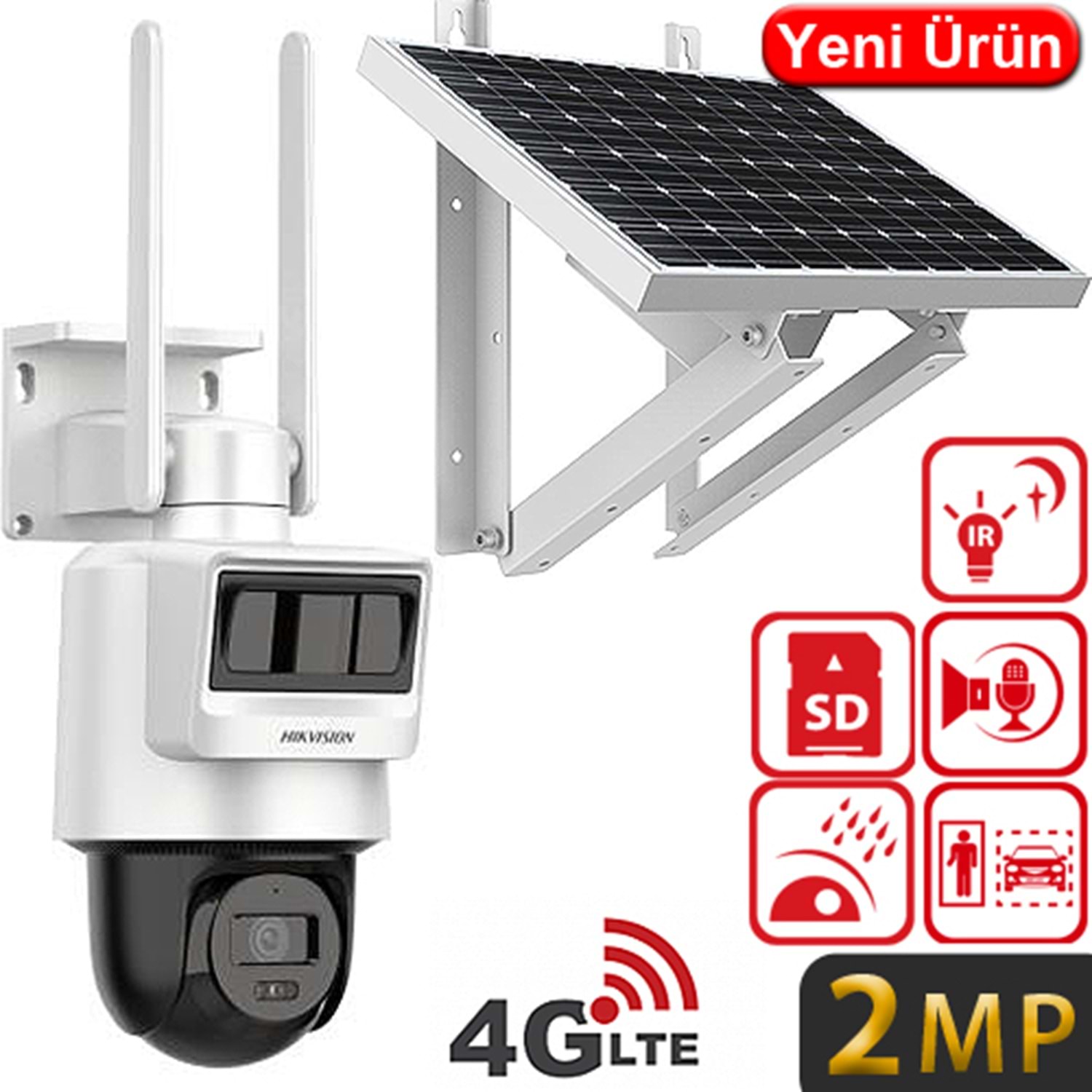

HIKVISION (DS-2DE2C200IWG-K/4G/C05S10) 2MP IR 4G 512GB SOLAR GÜNEŞ ENERJİ DESTEKLİ IP PT KAMERA

Image Sensor : 1/2.9" Progressive Scan CMOS

Max. Resolution : 1920 × 1080

Min. Illumination : Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time : 1/3 s to 1/100,000 s

Day & Night : IR cut filter

Lens Type : Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV :

2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121°

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°

Lens Mount : M12

Iris Type : Fixed

Aperture : F1.6

Movement Range (Pan) : 0° to 340°

Movement Range (Tilt) : 0° to 80°

Pan Speed : Up to 25°/s

Tilt Speed : Up to 25°/s

DORI :

2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Supplement Light Type : IR

Supplement Light Range : Up to 30 m

Smart Supplement Light : Yes

IR Wavelength : 850 nm

Main Stream :

50 Hz: 12.5 fps ( 1920 × 1080, 1280 × 720)

60 Hz: 15 fps ( 1920 × 1080, 1280 × 720)

Sub-Stream :

50 Hz: 12.5 fps (640 × 480, 640 × 360)

60 Hz: 15 fps (640 × 480, 640 × 360)

Video Compression :

Main stream: H.265/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile,Main Profile,High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR,VBR

Region of Interest (ROI) : 1 fixed region for main stream

Audio Type : Mono sound

Audio Sampling Rate : 8 kHz/16 kHz

Environment Noise Filtering : Yes

Audio Compression : G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC

Audio Bit Rate : 16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

API ONVIF : (Profile S, Profile G, Profile T),ISAPI,SDK

Security : Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Simultaneous Live View : Up to 6 channels

Protocols : TCP/IP, DHCP, IPv4

User/Host :

Up to 32 users

3 user levels: administrator, operator, and user

Client : Hik-Connect,HikCentral Professional, Hik-Partner Pro

Web Browser : Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Standard : LTE-FDD,LTE-TDD,UMTS

Frequency :

EU:

LTE-FDD: B1/3/5/7/8/20/28

IN:

LTE-FDD: B1/3/5/8

LTE-TDD: B34/38/39/40/41

LA:

LTE-FDD: B2/3/4/5/7/8/28/66

NA:

LTE-FDD: B2/4/5/12/13/17/66/71

UMTS: B2/4/5

Uplink and Downlink Data Rate :

EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

NA: uplink: 50 Mbps, downlink: 150 Mbps

SIM Card Type : Nano SIM

Wide Dynamic Range (WDR) : Digital WDR

SNR : ≥ 52 dB

Day/Night Switch : Day,Night,Auto,Schedule

Image Enhancement : BLC,HLC,3D DNR

Image Settings : Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer Type : PIR + Radar

Detection Angle : Horizontal: 80°, vertical: 30°

Detection Range : Up to 12 m

Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone : 1 built-in microphone

Built-in Speaker : 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Reset Key : Yes

Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

Power :

Power Consumption and Current:

Typical power scenarios: 1.85 W (4G working)

Standby scenarios: 80 mW

Max. Power consumption: 7 W

Power Supply: 12 VDC ± 25%

*For debugging only

10 W (deviation: ± 5%) Solar panels

Power Interface:

Power supply interface: four-core aviation connector

Extened solar panel: four-core aviation connector

Dimension : 133.1 mm × 177.64 mm × 382.44mm/412.44 mm (5.24" × 6.99" × 15.06+"/16.24")

Material : Plastic

Package Dimension : 375 mm × 305 mm × 398 mm (14.76" × 12.01" × 15.67")

Weight : Approx. 850 g (1.87 lb.)

With Package Weight : Approx. 4700 g (10.34 lb.)

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions : 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)

Language : English, Ukrainian

General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email

Battery Type : Ternary Lithium

Cycle Lifetime :

27 hours (1.85 W)

Full charge battery runtime without solar input.

Battery Voltage : 9 V to 12.6 V

Capacity : 50.76 Wh

Max. Charging Voltage : 12.6 V

Max. Output Voltage : 12.6 V

Operating Temperature :

Charging: 0 °C to 45 °C (32 °F to 113 °F)

Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

Battery Life : More than 800 cycles

RF :

CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

*CE certification is only for the device sold in the European region.

EMC :

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

Safety :

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment :

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection : IP66: IEC 60529-2013
