HIKVISION (iDS-7204HQHI-M1/FA) 4 KANAL 1xSES 1xHDMI 1xVGA 1x10TB HD-TVI HIBRIT KAYIT CİHAZI H265+

Henüz Değerlendirilmemiş

Stok Kodu

: Y5311210

Stok Miktarı

: 12 ADET

Whatsapp ile Sipariş

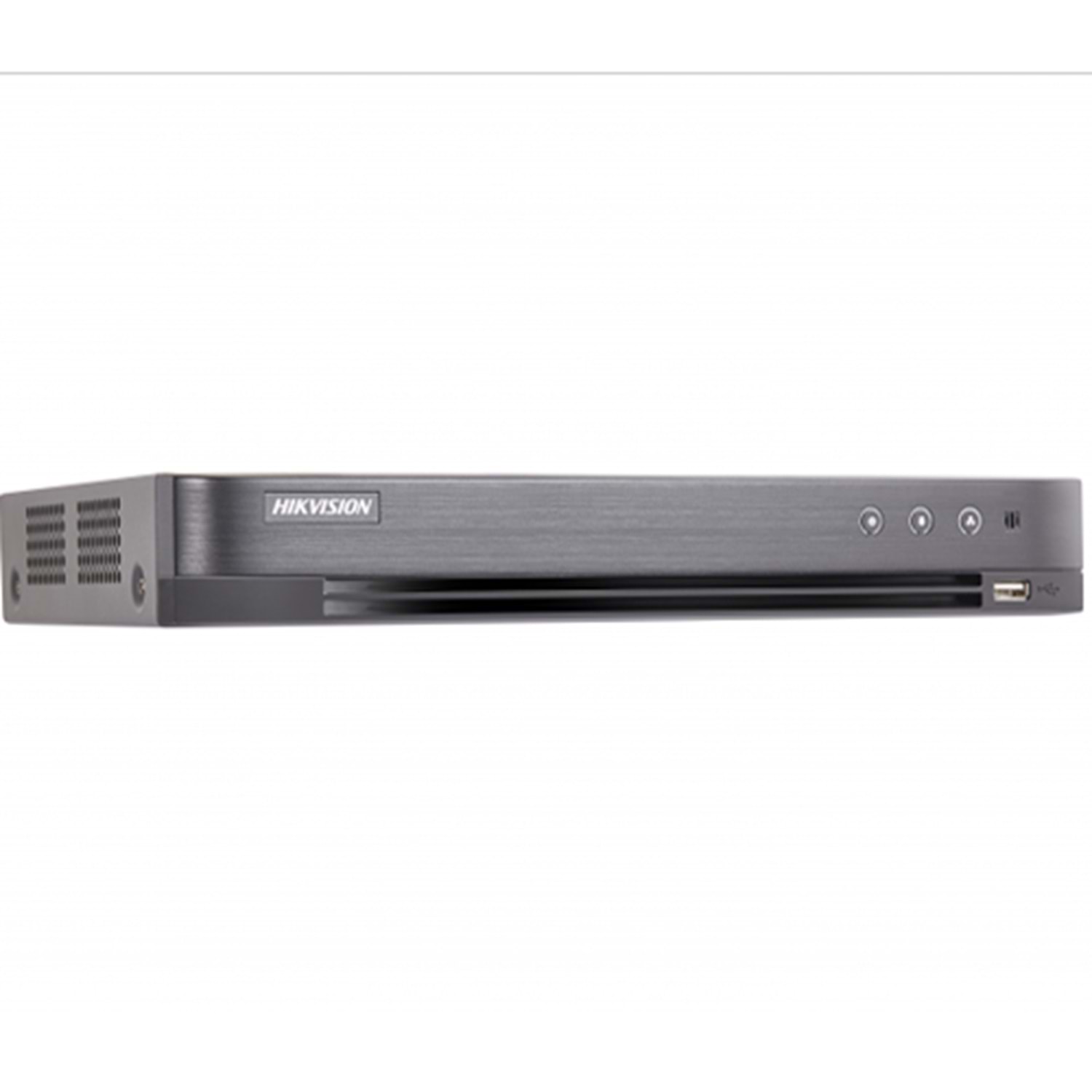

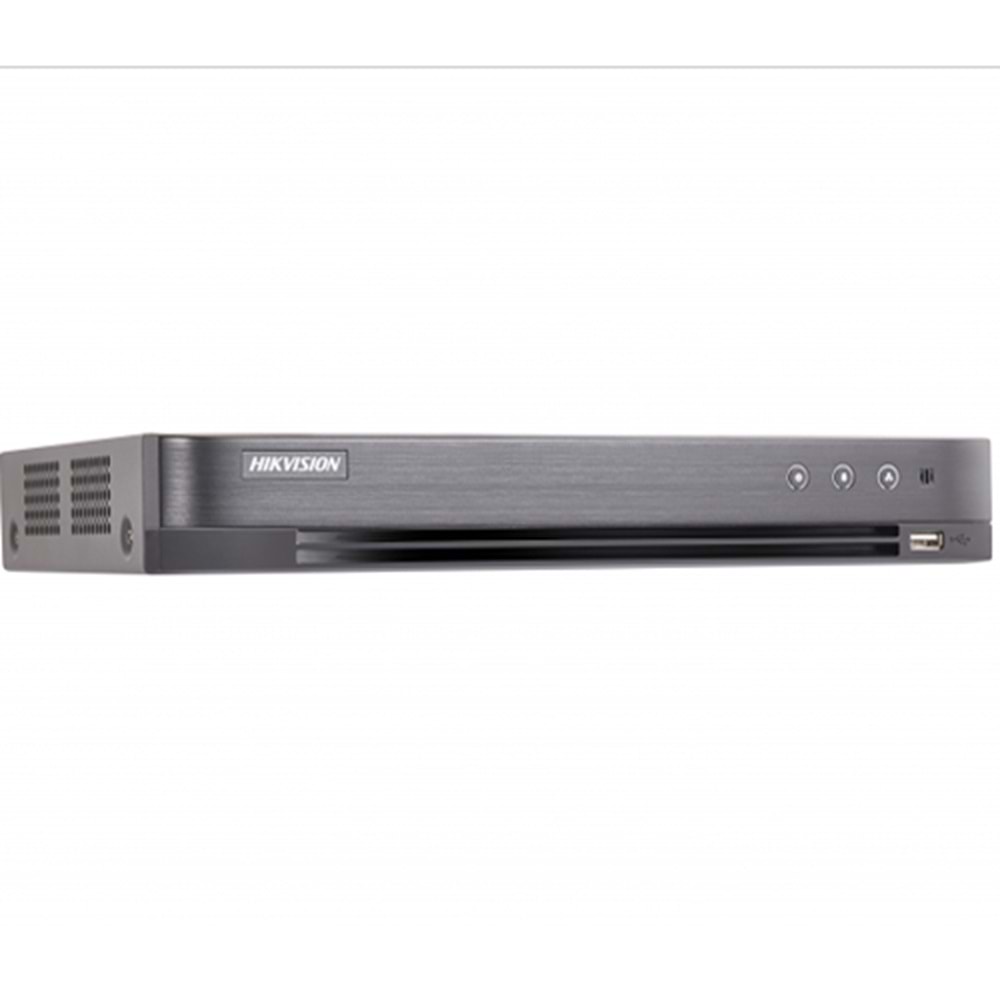

4-ch 1080p 1U H.265 AcuSense DVR

4 channels and 1 HDD 1U AcuSense DVR
Supports false alarm reduction based on deep learning algorithm
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
Up to 6 network cameras can be connected
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Facial Recognition
Face Picture Comparison : Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
Face Picture Library : Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis : Up to 2-ch

Recording
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution :
When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate :
Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate : 32 Kbps to 6 Mbps
Dual-stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Video and Audio
IP Video Input : 1-ch (up to 5-ch)
Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps

Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input :
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input : 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input : 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input : 5 MP@20 fps,4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input : PAL/NTSC
CVBS Output :
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Output :
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output
VGA Output :
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output
Audio Input :
1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback : 4-ch

Network
Remote Connection : 32
Total Bandwidth : 72 Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface
SATA : 1 SATA interface, up to 10 TB capacity for each disk
Serial Interface : RS-485 (half-duplex)
USB Interface :
Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0
Alarm In/Out : N/A (optional to support)

General
Power Supply : 12 VDC, 1.5 A
Consumption : ≤ 18 W
Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity : 10% to 90%
Dimension : (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight : ≤ 1.16 kg (2.6 lb)
