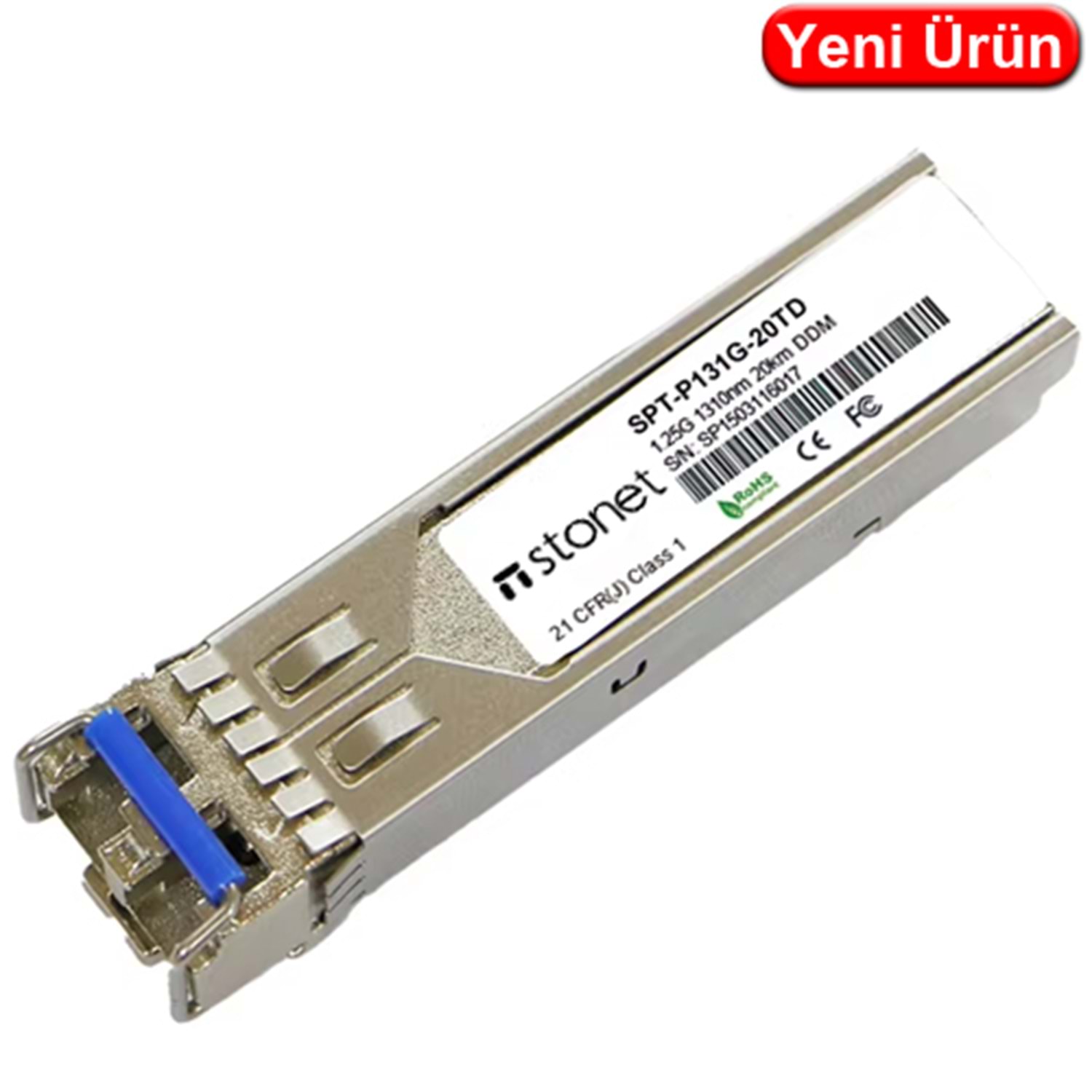

STONET (SPT-P131G-20TD) 1G SM 20KM SFP ENDÜSTRİYEL (DAHUA - CİSCO UYUMLU)
Henüz Değerlendirilmemiş
Whatsapp ile Sipariş 1310nm 1.25Gbps 20km 0ºC ~ +70ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver
Product Description
1.25gbps 1310nm Sm Duplex Lc 20km Fiber Optic Sfp Module
Description of 1.25g sfp module
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features of 1.25g sfp module
? Dual data-rate of 1.25Gbps/1.063Gbps operation
? 1310nm FP laser and PIN photo detector for 20km transmission
? Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
? Digital Diagnostic Monitoring: Internal Calibration or External Calibration
? Compatible with SONET OC-24-LR-1
? Compatible with ROHS
? +3.3V single power supply
? Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
Applications
? Gigabit Ethernet
? Fiber Channel
? Switch to Switch interface
? Switched backplane applications
? Router/Server interface
? Other optical transmission systems
Specifications
| Product NO. | SPT-P131G-20D |
| Wavelength | 1310/1550nm |
| Fiber Type | Single mode |
| Transmission Distance | 10KM/20KM |
| Operating temperature | Standard: 0 to +70°C Industrial: -40 to +85°C |
| Date rate | 1.25Gbps/1.063Gbps |
| Connector | Duplex LC |
Optical and Electrical Characteristics
SPT-P131G-20D: (FP and PIN, 1310nm, 20km Reach)
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | ||
| Transmitter | ||||||||
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | | ||
| Spectral Width (RMS) | σ | | | 4 | nm | | ||
| Average Output Power | Pout | -9 | | -3 | dBm | 1 | ||
| Extinction Ratio | ER | 9 | | | dB | | ||
| Optical Rise/Fall Time (20%~80%) | tr/tf | | | 0.26 | ns | | ||
| Data Input Swing Differential | VIN | 400 | | 1800 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | | ||
| TX Disable | Disable | | 2.0 | | Vcc | V | | |
| Enable | | 0 | | 0.8 | V | | ||
| TX Fault | Fault | | 2.0 | | Vcc | V | | |
| Normal | | 0 | | 0.8 | V | | ||
| Receiver | ||||||||
| Centre Wavelength | λc | 1260 | | 1580 | nm | | ||
| Receiver Sensitivity | | | | -24 | dBm | 3 | ||
| Receiver Overload | | -1 | | | dBm | 3 | ||
| LOS De-Assert | LOSD | | | -26 | dBm | | ||
| LOS Assert | LOSA | -36 | | | dBm | | ||
| LOS Hysteresis | | 1 | | 4 | dB | | ||
| Data Output Swing Differential | Vout | 400 | | 1800 | mV | 4 | ||
| LOS | High | 2.0 | | Vcc | V | | ||
| Low | | | 0.8 | V | | |||
Mechanical Dimensions
Ordering Informations
| Part Number | Product Description |
| SPT-P131G-20 | 1310nm 1.25Gbps 20km 0ºC ~ +70ºC Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
| SPT-P131G-20D | 1310nm 1.25Gbps 20km 0ºC ~ +70ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
| SPT-P131G-20TD | 1310nm 1.25Gbps 20km -40ºC ~+85ºC DDM,Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
| SPT-P131G-20T | 1310nm 1.25Gbps 20km -40ºC ~+85ºC Single-mode Duplex lc SFP Module Fiber Optic Transceiver |
