Precise cleaved surfaces; Smooth cleaving angle around 0.5 degree
Blade lifetime up to 2000 times each point,24 cutting point,blade life time up to 48000times;
Automatic return of blade, one step to finish; convenient design, easy to use;
Smart design of pressure pads preventing the fiber from damage by the return of blade carriage
Easy-step operation to complete the cleaving and collection of waste fiber shards.
Main Body is aluminum material; Blade magnesium alloy materials

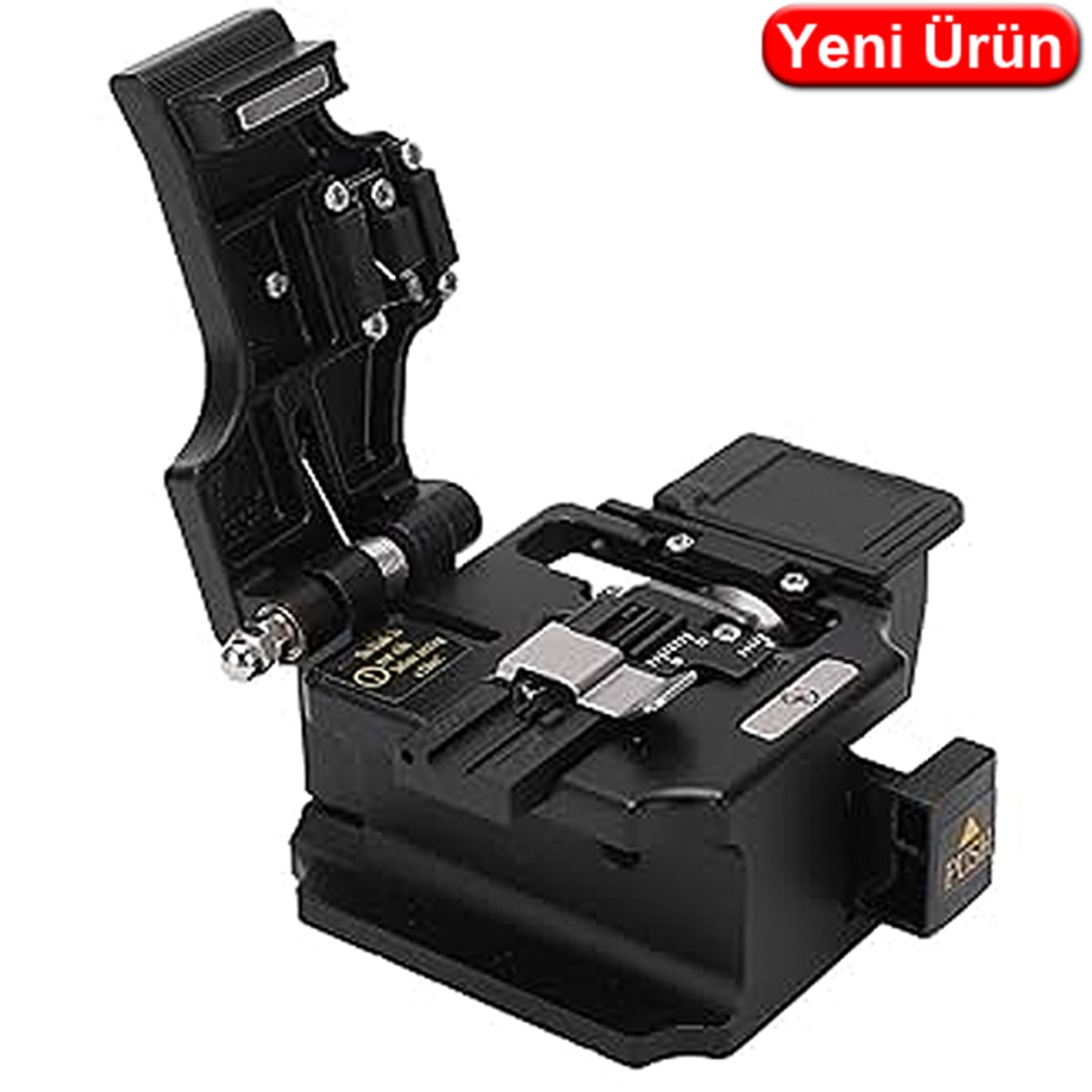

| Model | SPTK-09A |
| Cleave Angle | ≤0.5° |
| Cleave Length | 0.25mm fiber:9~16mm 0.9mm fiber:10~16mm |
| Fiber Diameter | 125μm |
| Coating Diameter | 0.25&0.9mm |
| Size | 63W×56D×56H(mm) |
| Weight | 280g |
| Blade Life Time | Around 48000 fibers |
| Blade Point | 24 point |
| Scrap Collector Bin | Yes |
| Operating Temp. | Min. -40°C Max.80°C |
| | |
| Product Name | Replacement Blade SPTK-VFL650-AS10 |
| Outer Diameter | 20mm |
| Inner Diameter | 4mm |
| Thickness | 3mm |
| Material of Blade | Tungsten Steel |
| Blade Cutting Point | 24 |
| Life Span of Each cut point | 2000~2500times |
| Life span of Blade | 48000~60000times |
