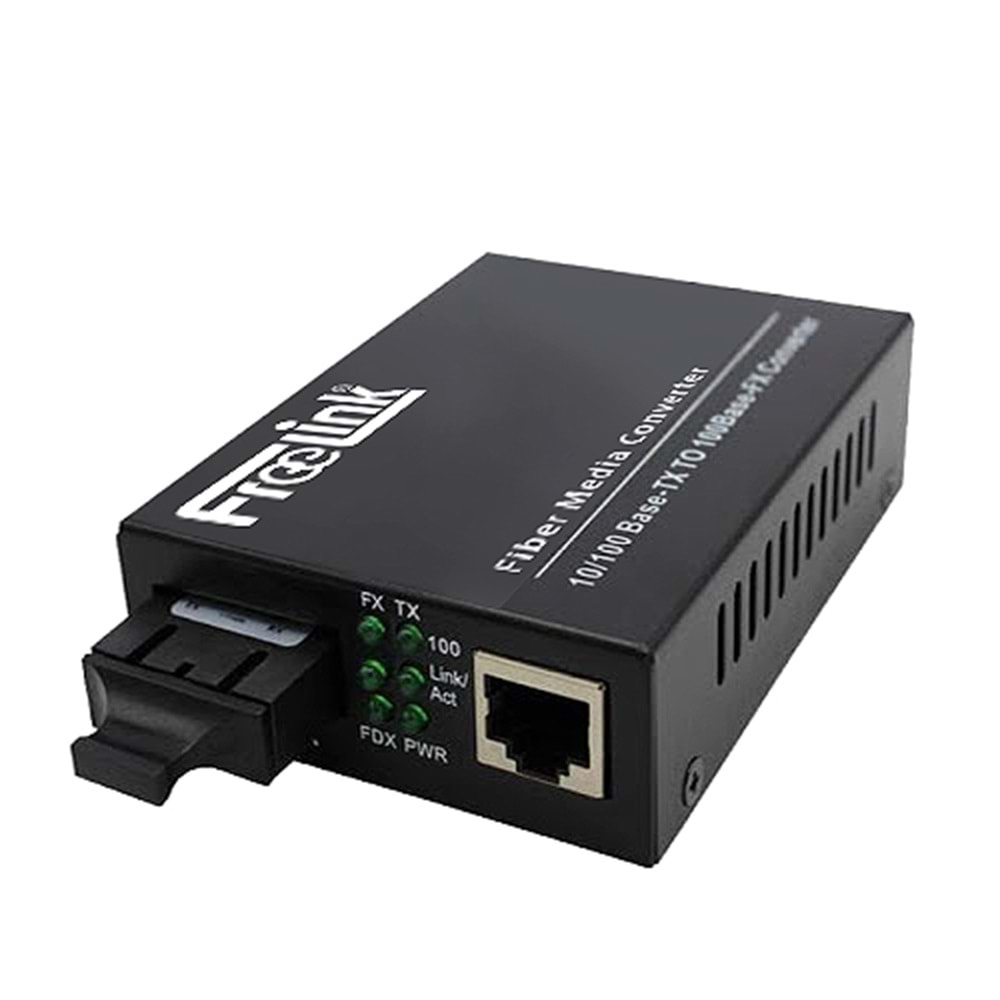

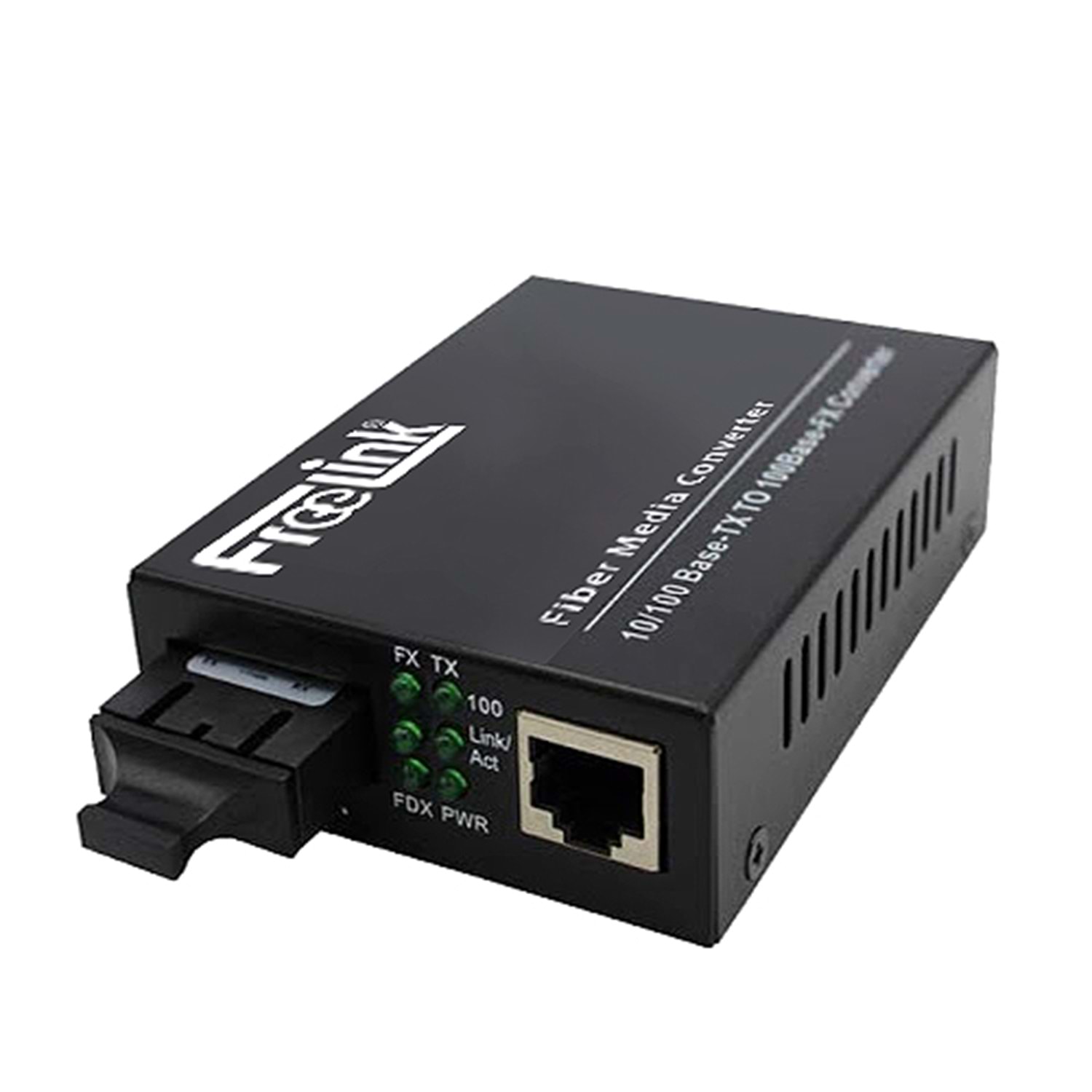

FREELINK (E4764) F/O CONVERTER 10/100 MBPS DUPLEX SC MM

Overview



The NuFiber® single fiber single mode media converters are designed to transmit and receive 10/100Mbps data over one optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.



Key Features



1. Plug and play, high performance, Low power consumption

2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards

3. Auto-negotiation support on RJ45 port

4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port

5.Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps, full duplex or half duplex data.

6. Auto MDI/MDI-X support on RJ45 port

7. Distances up to: 2 km Multimode, 120 km Single Mode

8. ST, SC, FC optical connectors

9. Status LED's for TX,FX LINK/ACT, POWER,100M to easily monitor network status

10.External power adapter





Applications



>Access Control Systems

>Building and Environmental Control Systems

>Tamper Switch

>10/100 Mbps Ethernet Media Converter

>High Speed Computer Links



Technical Specifications



Parameters	Specifications
Standards	IEEE802.3u (100Base-TX/FX), IEEE 802.3 (10Base-T)
Wavelength	Multi-mode: 850 nm or 1310nm Single-mode: 1310 nm , 1550 nm
Transmission Distance	Fiber: Multi-mode: 2 km (fiber size: 62.5/125 or 50/125 μm) Single-mode: 25/40/60/100/120 km UTP: Cat. 3/4/5/6: 100 m
Port	One RJ45 port One Fiber port (ST/SC/FC Optional, LC:SFP Module)
MDI/MDI-X	Auto selection
MAC Address Table	I K
Buffer Size	1Mbit
Flow Control	Duplex:flow control ; Half duplex:back pressure
Time Delay	Store-and-forward:9.6us,Straight-through:0.9us
BER	<1/1000000000
Power Supply	Outside: 5 V DC 1 A Built-in: 100 V to 265V AC 50 Hz to 60 Hz
Operating Temp.	0 °C to +70 °C
Storage Temp.	-20 °C to +80 °C
Relative Humidity	5% to 90% (non-condensing)
Dimensions	95 mm × 70 mm × 25 mm
Net Weight	0.165 kg
