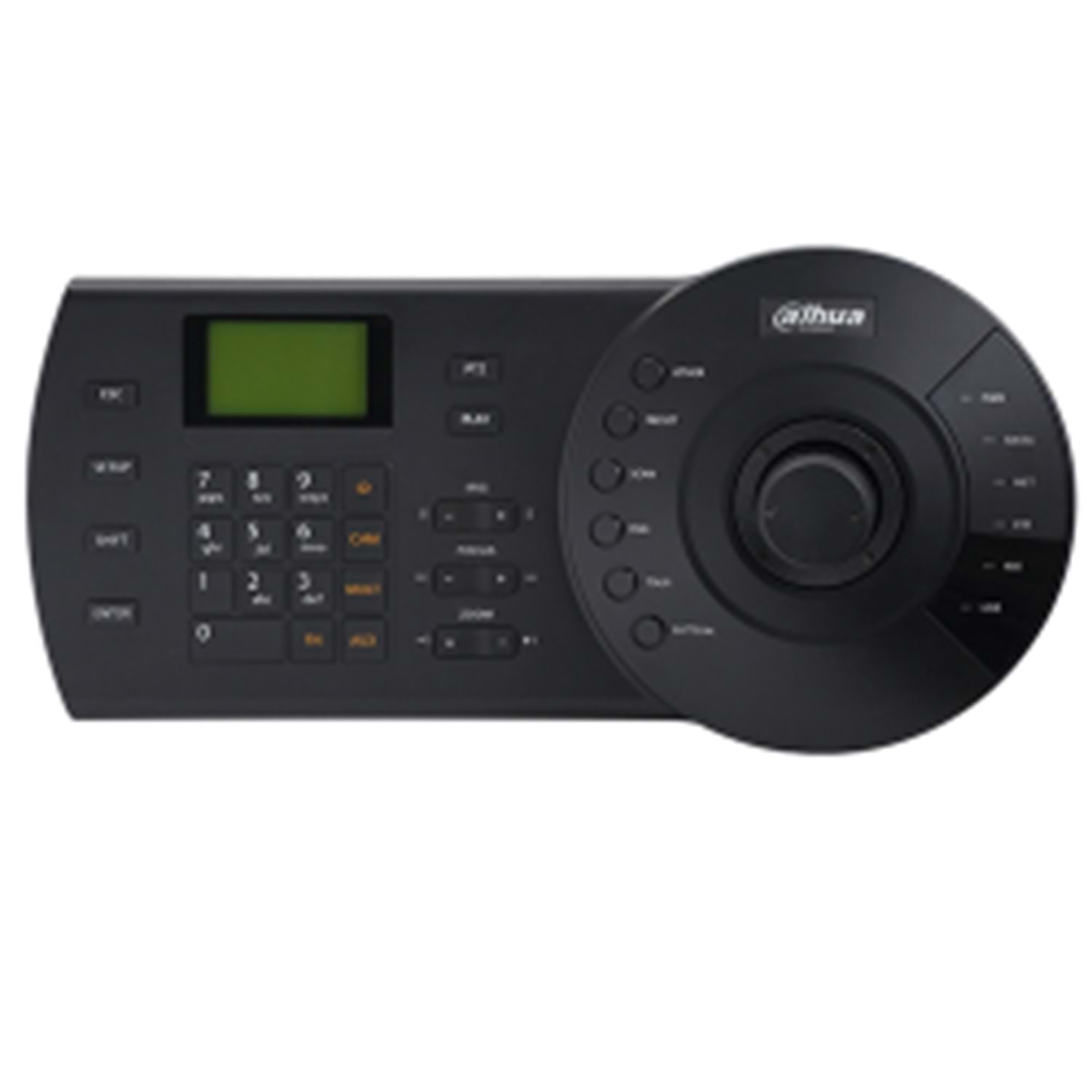

HD-CVI & IP & Analog Kontrol Klavyesi (ONVIF)
HD-CVI/IP/Analog Speed Dome, HD-CVI/Analog DVR, Network Video Server
Merkezi Yönetim Platformu Kontrolleri, RS485,RS422,USB, RS232 & Ağ Bağlantıları,
PTZ Fonksiyonları için 3D Joystick, Preset Pozisyonu,
Oto Tarama, Oto Pan, Oto Tur, Pattern Kontrolü, AUX Fonksiyonları, Menü Ekranı
Keyboard to Control
> Dahua High Speed Dome (all models)
> Dahua Standalone DVR (KBD1000 & NKB1000 only)
> Dahua Network High Speed Dome (NKB1000 only)
> Network Video Server (NKB1000 only)
Connection
> NKB1000: RS485, RS422, USB, RS232 & Network
> KBD1000: RS485, RS422, USB & RS232
> KB1000 : RS485, RS422 & USB
Functions
> Three Dimensional Joystick Control of PTZ Functions
> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Auxiliary Functions
Auxiliary Functions
> On-Screen Menu & User Operation Procedure Tips
> Connect to SmartPSS via USB (NKB1000 only)
| Working Temperature | -10?~+55? |
| Working Humidity | 10% ~ 90% |
| Atmosphere Pressure | 86kpa~106kpa |
| Dimension | 330mm×160(140)mm×37.5(21)mm (W×D×H)(height: 100mm including joystick) |
| Weight | 2.5kg (Including package) |
| Model |
| Model | NKB1000 | KBD1000 | KB1000 |
| General |
| Keyboard Key panel | Electromechanical |
| Joystick | 3-axis, vector-solving, with twisting, return to-center head |
| Keyboard Connector | RJ-45, RS232, RS485, RS422, USB | RS232, RS485, RS422 | RS485, RS422 |
| Keyboard Communication | Direct Mode, Network Mode | Direct Mode | Direct Mode |
| Direct Mode | Interface: RS232/RS485 DVR Protocol: DH2 Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P, etc |
| Network Mode | Interface: RJ45 DVR/Network Dome: IP Address/Port/Protocol | N/A | N/A |
| Display | LCD, 75.2mm×33.85mm |
| Environmental |
| Power Supply | Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/1000mA |
| Power Consumption | 5W |
