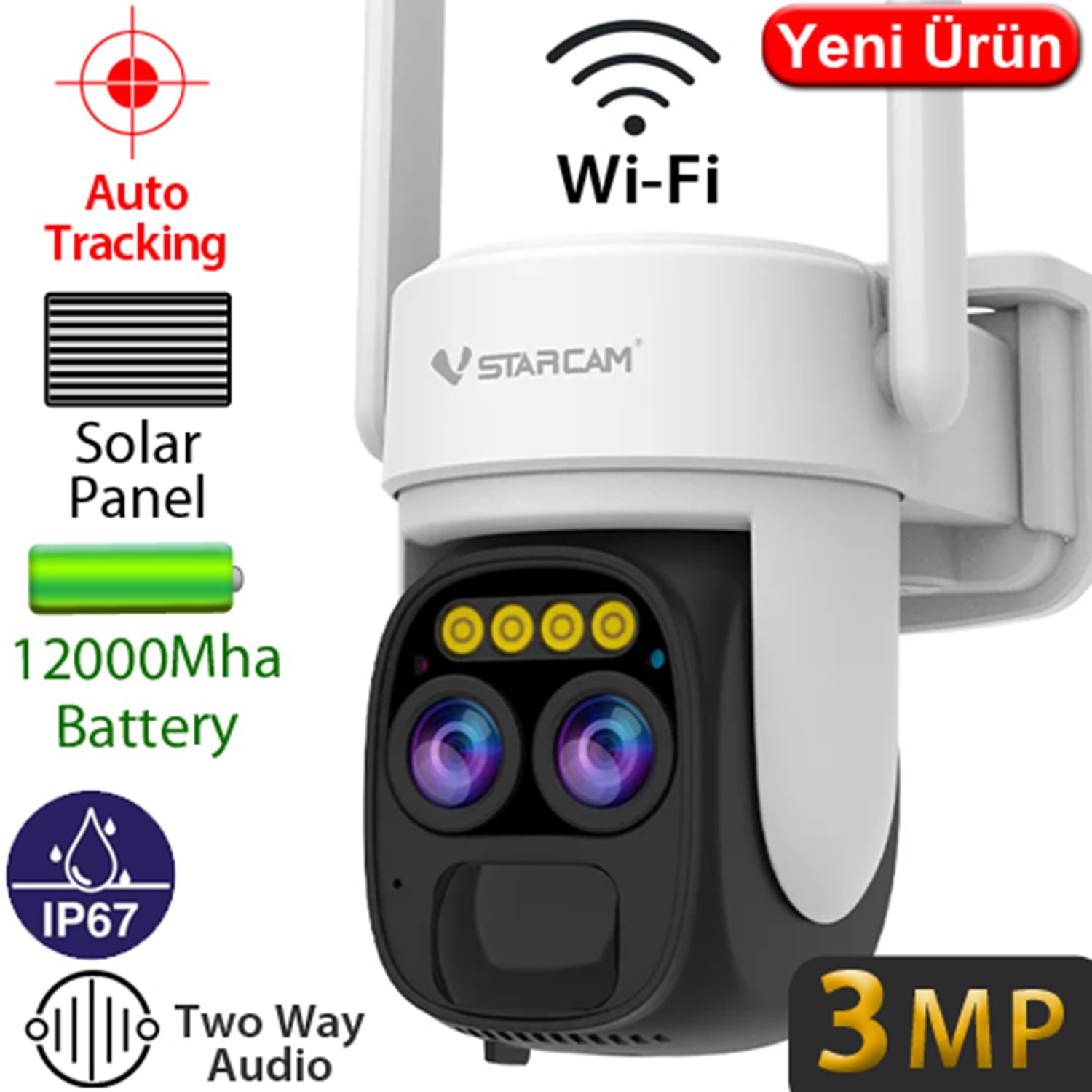

| Model | CB67D (With Solar Panel) |
| | Type | Parameters |
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time |
| Collection | CPU | T31 |
| No. of Lens | Dual Lens |
| Lens | 4mm+12mm Long focus lens+short focus lens, IRCUT integrated |
| Image sensor | 1/2.9 CMOS sensor |
| Minimum illumination | 0.01Lux |
| Sensor performance | Support automatic white balance, automatic gain control and automatic backlight compensation |
| Night Vision | 4 IR lights+4 white lights, Dual light source, 20MIL,850nm wavelength |
| Viewing angle | 100°/30° |
| Video | Resolution | 2304×1296P/15fps/3MP |
| Zoom | Dual lens stepless 5x hybrid zoom |
| Night Vision | Full color night vision/black and white night vision/intelligent night vision |
| Compression standard | H.264 /MJPEF/JPEG |
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. |
| Bit rate | CBR/VBR two rate control modes, and the output rate range is 128~4096kbps |
| Image adjustment | Flip up and down, OSD display |
| Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8?1W speaker |
| Sampling frequency/bit width | 8KHz/16bit |
| Compression standard/Bit Rate | G711A |
| AI | Humanoid detection | Humanoid detection, filtering invalid video content |
| Object tracking | / |
| Area detection | Free daub, only monitoring the areas concerned by users |
| Smart notification sound | Different devices push different sounds, so that you can know exactly which device is triggered |
| Intelligent alarm sound | Set different equipment alarm sounds according to different scenarios |
| More AI functions (testing) | Pets, vehicles, parcels, etc |
| Network | Network | WiFi |
| Network protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P,IPV4,IPV6 |
| Wireless network | IEEE802.11b/g/n |
| Wireless frequency | 2.4~2.4835GHz |
| Wireless security encryption | 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
| Wireless connection | AP hotspot networking, QR code networking |
| Key/interface | USB | Micro usb/Charging port |
| Key1 | Toggle switch/left and right toggle switch mode |
| Reset key | 1 reset key/long press to restore factory settings |
| Storage | External TF card | Support TF card (up to 256GB) |
| Cloud storage | Free loop cloud storage |
| Alarm | Alarm detection | Motion detection/PIR human detection/humanoid detection, adjustable distance by gear, detection distance up to 15M |
| Physical Indicators | Rated voltage | DC5V±5% |
| Operating condition | Temperature: -10~50?; Humidity: <90% |
| Weight | Gross weight: 1070g (Note: in kind prevail) |
| Size | Camera: 233 * 109 * 133mm, Color box: 205 * 181 * 147mm, Outer packaging box: 560 * 425 * 470mm, 18PCS/box |
| Packing list | Camera * 1, screw package, MICRO USB * 1, manual * 1, (solar panel * 1, solar panel bracket * 1 optional) |
