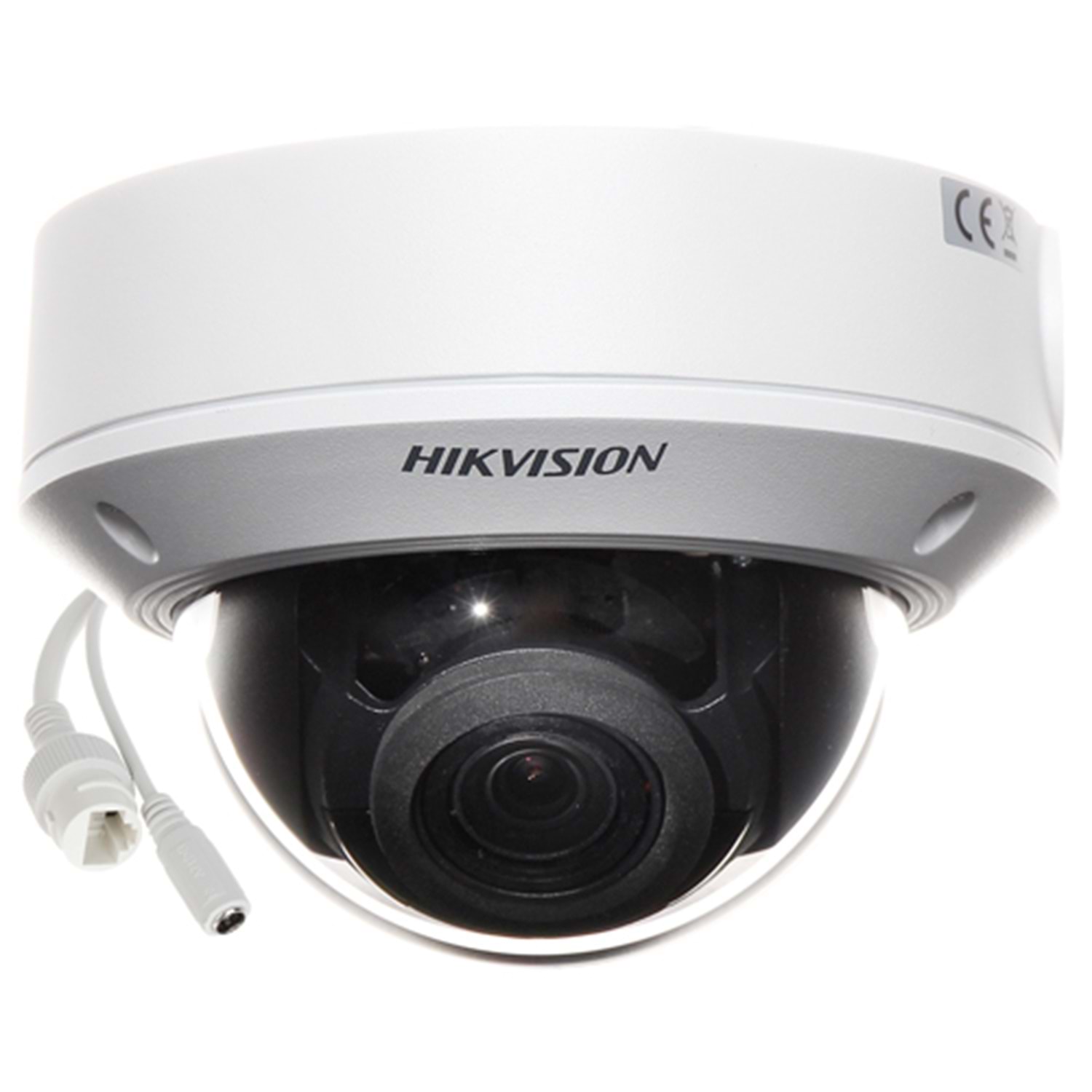

HIKVISION (DS-2CD1723G0-IZS) 1/2.8 CMOS 2MP 2.8MM-12MM LENS 3D DNR IP67 IK10 IP IR DOME KAMERA-50MT.

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

HIKVISION (DS-2CD1723G0-IZS) 1/2.8 CMOS 2MP 2.8MM-12MM LENS 3D DNR IP67 IK10 IP IR DOME KAMERA-50MT.

Henüz Değerlendirilmemiş

Stok Kodu

: Y5303391

Stok Miktarı

: 3 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

2 MP Varifocal Dome Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to DWDR technology
Up to 256 GB SD card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67), vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range

Camera
Image Sensor : 1/2.7" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed : 1/3 s to 1/100,000 s
Wide Dynamic Range : Digital WDR
Day & Night : IR Cut Filter
Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lens
Lens Type : Varifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV : 2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
Lens Mount : Ø14
Iris Type : Fixed
Aperture : F1.6

Illuminator
IR Wavelength : 850 nm
IR Range : Up to 30 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720),

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Region of Interest (ROI) : 1 fixed region for main stream

Audio
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface, ISAPI
User/Host : Up to 32 users. 3 levels: administrator, operator and user
Client : iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch : Auto, Schedule, Day, Night
Image Enhancement : BLC, 3D DNR

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD card, up to 256 GB
Audio-S: 1 input (line in), 1 output (line out), mono sound
Alarm -S: 1 input,1 output, max. 12 VDC, 30 mA
Reset Key : Yes

Event
Basic Event Motion detection, video tampering alarm, exception
Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, trigger alarm output

General
Power
12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug

PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.32 A, max. 11.5 W
Camera Dimension : Ø141 mm × 99.9 mm (5.6" × 3.9")
Package Dimension : 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1 ")
Camera Weight : Approx. 820 g (1.8 lb.)
With Package Weight : Approx. 1200 g (2.6 lb.)
Storage Conditions : -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Language : English, Ukrainian
General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment
CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
OtherIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
