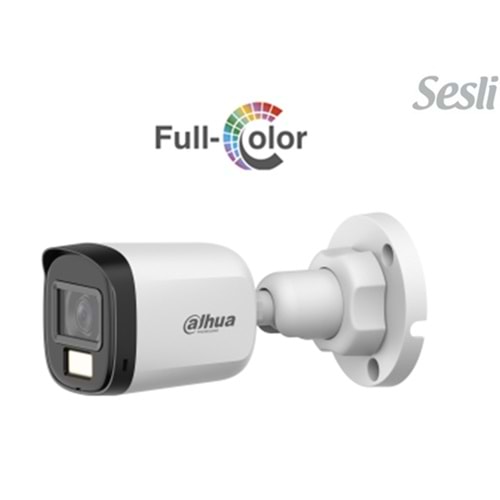

2MP Smart Hybrid Light Fixed Mini Bullet Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
Fixed focal lens, 2.8 and 3.6 mm optional
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
Camera
Image Sensor : 2 MP CMOS
Max. Resolution : 1920 (H) × 1080 (V)
Min. Illumination : 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night : ICR
Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
Signal System : PAL/NTSC
Lens
Lens Type : Fixed focal lens, 2.8 and 3.6 mm optional
Focal Length & FOV :
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

Lens Mount : M12
Illuminator
Supplement Light Type : White Light;IR
Supplement Light Range :
IR : Up to 20 m

White Light : Up to 20 m

Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
Image Settings : Brightness, Sharpness, Smart IR
Frame Rate :
TVI: 1080p @ 30 fps, 1080p @ 25 fps

AHD: 1080p @ 30 fps, 1080p @ 25 fps

CVI: 1080p @ 30 fps, 1080p @ 25 fps

CVBS: PAL/NTSC

Wide Dynamic Range (WDR) : Digital WDR
Image Enhancement : DWDR/BLC/HLC/Global
White Balance : Auto/Manual
AGC : Yes
Interface
Video Output : Switchable TVI/AHD/CVI/CVBS
General
Material : Plastic
Dimension : Ø70 mm × 138.8 mm (Ø2.76" x 5.46")
Weight : Max. 150 g (0.33 lb.)
Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication : HIKVISION-C
Language : English
Power Supply : 12 VDC ± 25%, Max. 3.2 W
Approval

Protection : IP67
