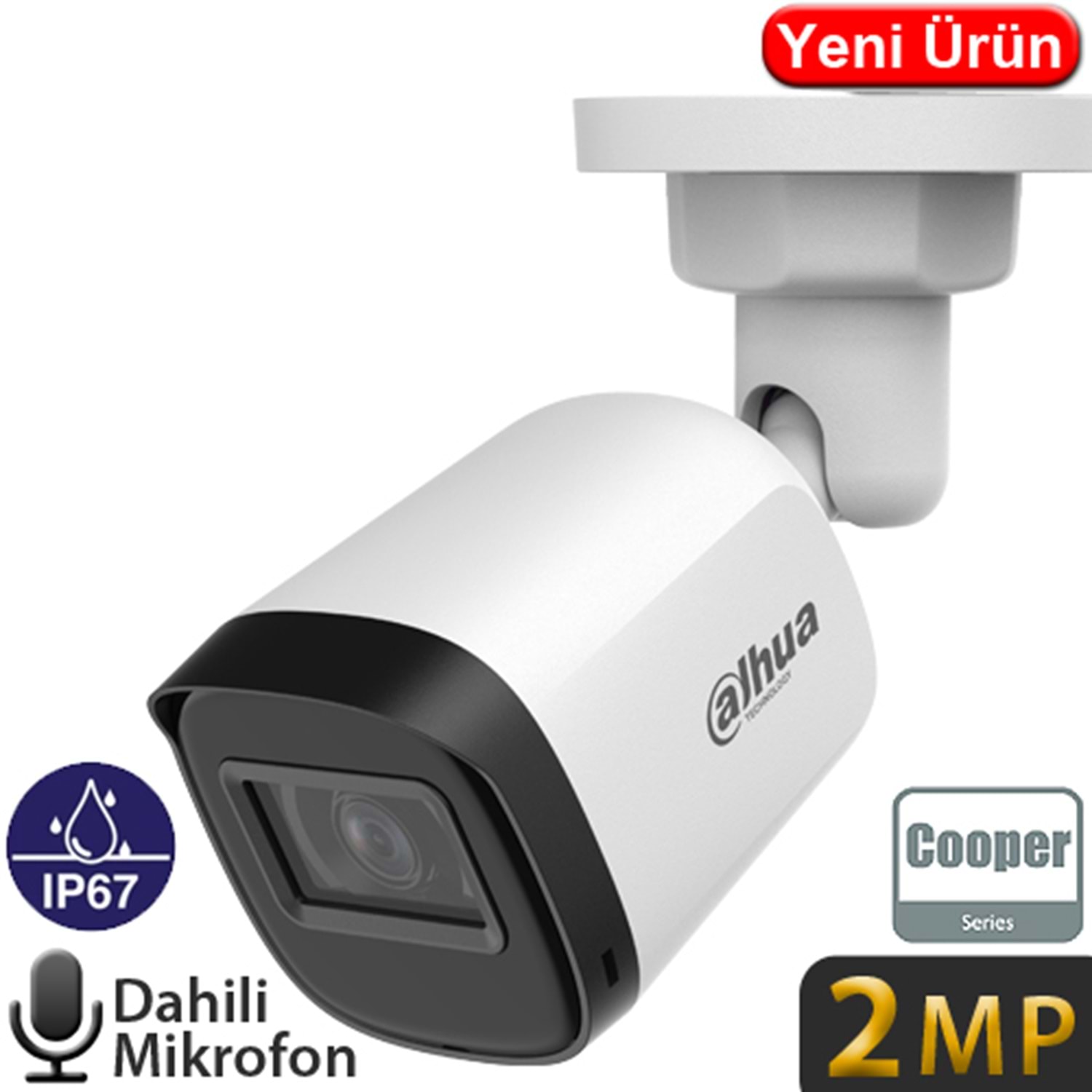

DAHUA (HAC-B1A21-U-A-0360B) 2MP 3.6MM PLASTİK MİKROFONLU HDCVI BULLET 20MT

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

DAHUA (HAC-B1A21-U-A-0360B) 2MP 3.6MM PLASTİK MİKROFONLU HDCVI BULLET 20MT

Henüz Değerlendirilmemiş

Stok Kodu

: E29610

Stok Miktarı

: 50+ ADET

Markası

: DAHUA

Whatsapp ile Sipariş

HAC-B1A21-U-A

1.0.01.12.25580-9001

EAN: 6923172566393

· Max. 30 fps@1080p.
· 30 m illumination distance.
· Built-in MIC.
· 3.6 mm fixed lens (2.8 mm,6 mm optional).
· CVI/CVBS/AHD/TVI switchable.
· IP67, 12 VDC.

Video
Video Frame Rate																		CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H
Resolution																		1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night																		Auto(ICR)/Color/B/W
BLC																		BLC; HLC; DWDR
WDR																		DWDR
White Balance																		Auto;Area white balance
Gain Control																		Manual;Auto
Noise Reduction																		2D NR
Illumination Mode																		IR Mode
Mirror																		Yes
Privacy Masking																		Off/On (8 areas, rectangle)
Pick-up Distance																		8 m (26.25 ft)
Port
Video Output																		Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input																		One channel built-in Mic
Environment
Operating Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity																		<95% (RH), non-condensing
Storage Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity																		<95% (RH), non-condensing
Protection																		IP67
Anti-corrosion Level																		Basic Protection
Lens
Lens Type																		Fixed-focal
Lens Mount																		M12
Focal Length																		3.6 mm
Max. Aperture																		F2.0
Field of View																		H: 80°; V: 43°; D: 94°
Iris Control																		Fixed
Close Focus Distance																		0.8 m (2.62 ft)
DORI Distance																		D: 55.0 m; O: 22.0 m; R: 11.0 m; I: 5.5 m (D: 180.45 ft; O: 72.18 ft; R: 36.09 ft; I: 18.04 ft)
Camera
Pixel																		2 MP
Image Sensor																		1/3.2" CMOS
Max. Resolution																		1920 (H) × 1080 (V)
Scanning System																		Progressive
Electronic Shutter Speed																		PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
Min. Illumination																		0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		>65 dB
Illumination Distance																		IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft)
Illuminator On/Off Control																		Auto;Manual
Illuminator Number																		2 (Warm light);2 (IR light)
Angle Adjustment																		Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
SD/HD Switch																		OSD Menu
Structure
Casing Material																		Plastic
Product Dimensions																		146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75")
Net Weight																		0.15 kg (0.33 lb)
Gross Weight																		0.20 kg (0.44 lb)
Installation																		Wall mount; ceiling mount; vertical pole mount
Certification
Certifications																		CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Power
Power Supply																		12 VDC ± 30%
Power Consumption																		Max 3.3 W (12 VDC, LED on)
