Manyetik Kontakt - Küçük
Uzaktan yapılandırma, bulut üzerinden güncelleme mobil uygulamadan durum görüntüleme
5 yıla kadar pil ömrü.
Zayıf pil uyarısı vardır.
1 adet kuru kontak girişi
Frekans değiştirme, iki yönlü iletişim ve AES128 şifreleme algoritması
Açık alanda 1200 m'ye kadar Alarm Paneli ile iletişim

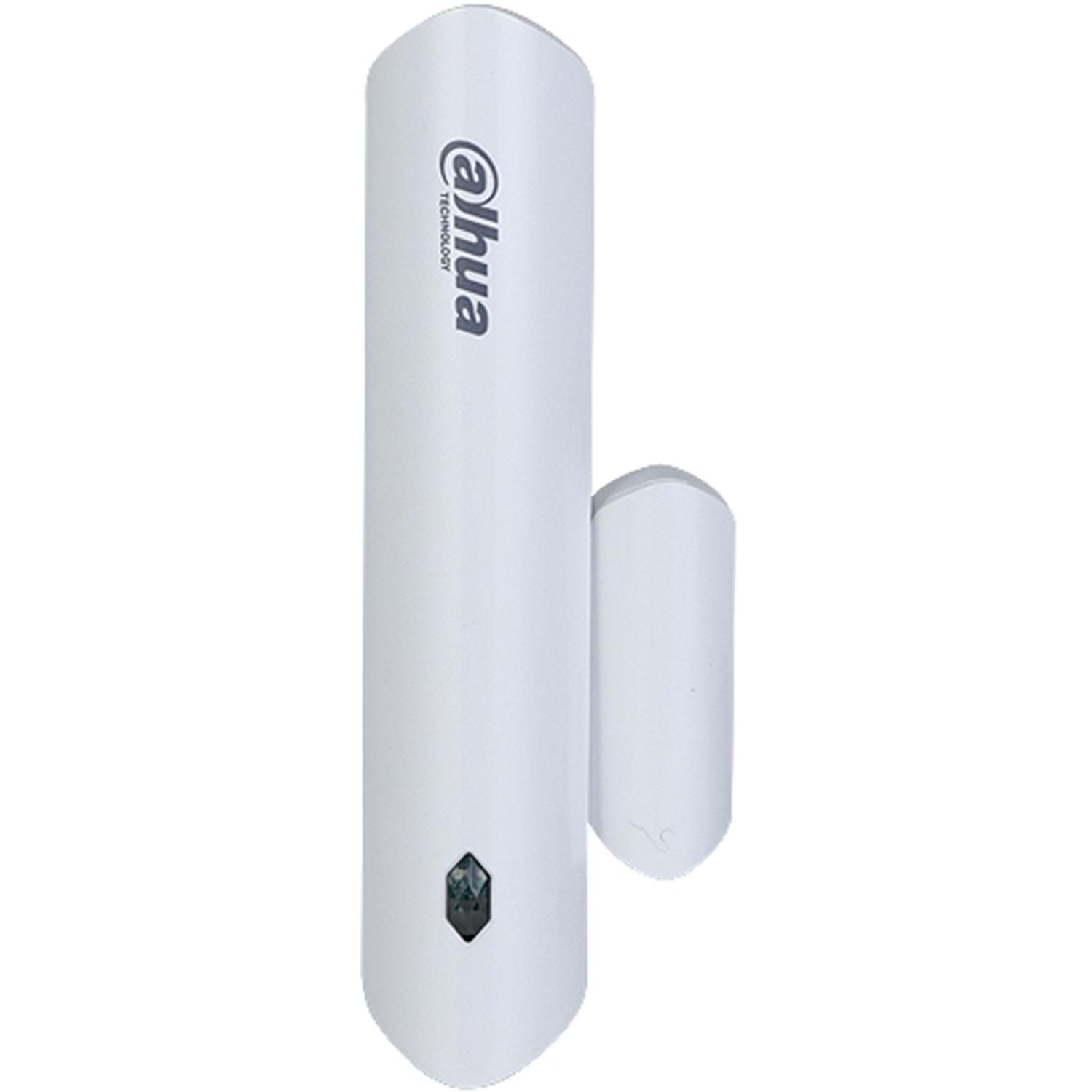

ARD323-W2(868)
Wireless door detector
> Signal strength detection.
> Low battery alarm.
> Temperature measurement.
> Frequency hopping function and two-way communication technology ensure communication stability.
> Cloud update and automatic recovery from update failure.
| Port |
| Indicator Light | 1 × green alarm indicator |
| Button | 1 × power button |
| Function |
| Tamper Alarm | Yes |
| Remote Upgrade | Cloud update |
| Low Battery Alarm | Yes |
| Test Mode | Yes |
| Search | Signal strength detection |
| Wireless |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,200 m (3,937.01 ft) in an open space |
| Communication Mechanism | Two-way |
| Frequency Hopping | Yes |
| Encryption Mode | AES128 |
| General |
| Power Supply | CR123A battery |
| Power Consumption | Max. 125 mW |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 100.2mm × 20.8mm × 20.3mm (3.94”× 0.82” ×0.80”) (L × W × H) |
| Packaging Dimensions | 135.0 mm × 98.5 mm × 27.8mm (5.31" × 3.88" × 1.09") (L × W × H) |
| Installation | Bracket mount |
| Net Weight | 70 g (0.15 lb) |
| Gross Weight | 115 g (0.25 lb) |
| Certifications | CE |
| Battery Life | 4 years (The external input type is NO) 2 years (The external input type is NC or Pulse) |
| Casing Material | PC + ABS |
| Temperature |
| Measuring Range | –15 °C to +65 °C (+5 °F to +149 °F) (indoor) |
| Measuring Precision | ±1 °C (±1.8 °F) |
| Resolution | 1 °C (33.8 °F) |
| Specification |
| Sensor | Reed Switch |
| Scenario | Non-metal doors |
| Movement Distance | < 40 mm (1.57") |
| Peripherals |
| External Zone | 1-channel dry contact input |
