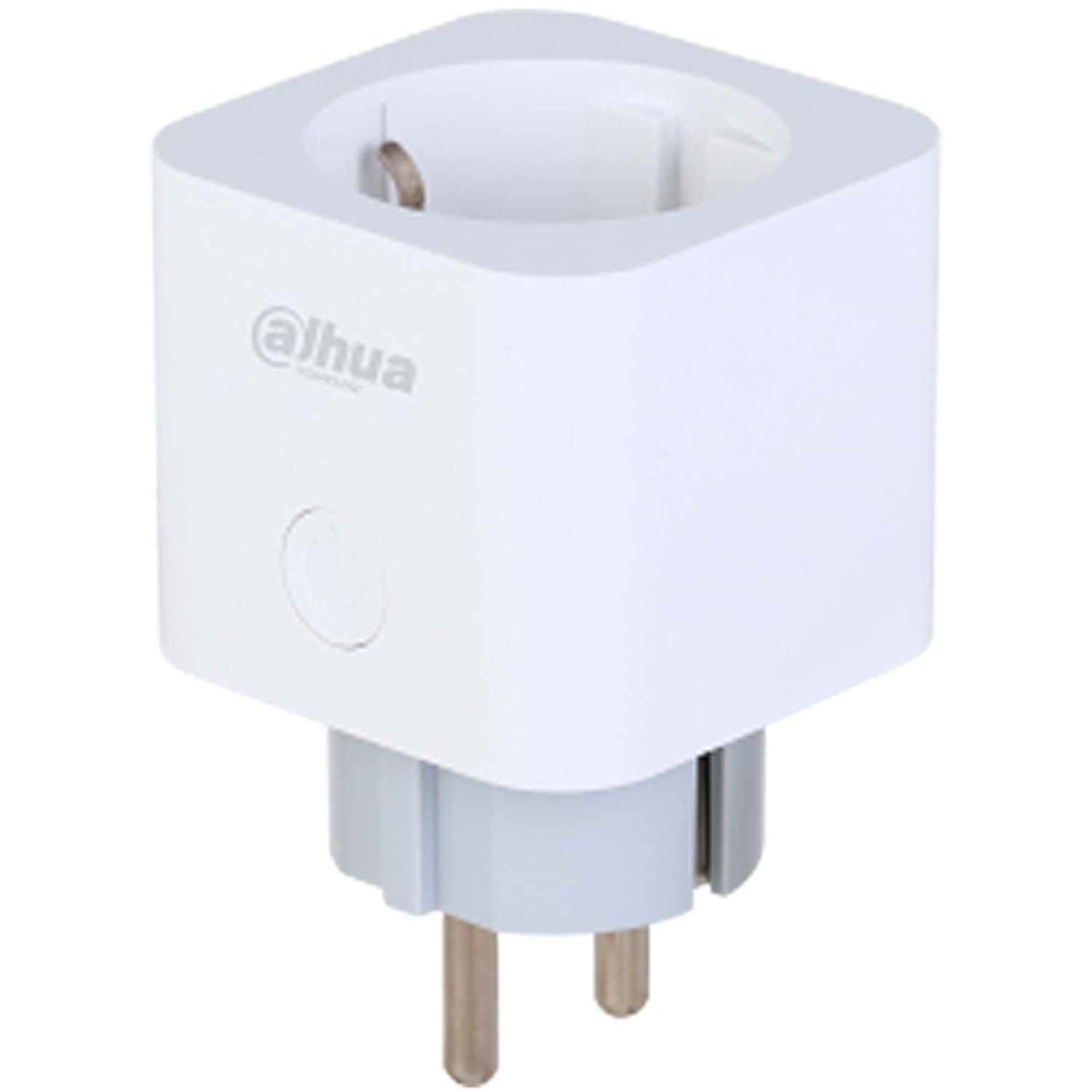

DAHUA (ICS1-W2) (868) AKILLI PRİZ

Port

Relay Output

1 port, NO/NC (100–240 VAC, max 16 A)

Wireless

Indicator Light

1 indicator light, displays multiple status
Flash green: paring
Solid green: the circuit is closed
Light off: the circuit is open

Remote Update

Supports cloud update

Button

1 button, perform multiple operations (open/close the circuit, restore to the factory settings and pair)

Signal Strength

Supports detecting signal strength.

Carrier Frequency

868 MHz

Communication Distance

In an open environment: 800 m (2,624.67 ft)

Transmit Power

12 dbm

Communication Mechanism

Two-way communication.

Encryption

AES-128

Frequency Hopping

Yes

General

Operating Temperature

Indoor: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH), non-condensing

Power Supply

100–240 VAC, 50/60 Hz

Product Dimensions

52 mm × 52 mm × 82 mm (2.05" × 2.05" × 8.32") (L × W × H)

Installation

With power strip/2 Pin

Net Weight

83 g (0.18 lb)

Power Consumption

0.3 W

Certifications

CE

Casing Material

PC

Data Monitoring

Data Monitoring

Yes

Data Type

Current; voltage; temperature

Accuracy

Current Measurement Accuracy

Protection range: 0 A-16 A
Measurement Accuracy: level 1.0 and above.

Voltage Measurement Accuracy

Protection range: 0 V-250 V
Measurement Accuracy: level 1.0 and above.

Internal Temperature Monitoring Accuracy

Protection range: 0 °C –55 °C
Measurement Accuracy: ±2% or ±2 °C

Alarm

Alarm Type

Alarm for overcurrent, overvoltage, and overheating
